Tuesday, July 22, 2014


WSO2 products ships with a embedded H2 database instance. When it comes to API manager there are three databases that are being used in API manager, by default these DBs are created in an Embedded H2 instance. So in most cases you will need to change these default databases, So in this post I will be explaining how to install PostgreSQL and change the default databases to PostgreSQL.


So these are DBs that are being used,
  • WSO2CARBON_DB-The datasource used for registry and user manager
  • WSO2AM_STATS_DB-The datasource used for getting statistics to API Manager
  • WSO2AM_DB-The datasource used for API Manager database

Installing PostgreSQL

If you have apt-get you directly install postgre by executing following commands

sudo apt-get update
sudo apt-get install postgresql postgresql-contrib

Now setup the password by issuing the following commands

sudo -u postgres psql template1

Type the following,

ALTER USER postgres with encrypted password 'your_password';

Press ctrl-d to exit.

Configuring PostgreSQL

Configure MD5 Autentication

open /etc/postgresql/9.3/main/pg_hba.conf , Make sure that you replace the x with your postgre version

sudo vim /etc/postgresql/X.X/main/pg_hba.conf

Update the following entry

local all postgres

Entry to

local all postgres md5

To enable TCP/IP connections edit the following

sudo vim /etc/postgresql/X.X/main/postgresql.conf

Locate the following line

#listen_addresses = 'localhost'

and un-comment it like following

listen_addresses = 'localhost'

Restart the postgresql

sudo service postgresql restart


Using PosgreSQL

To use PostgreSQL you have to login as one of the posgreSQL users, as following

sudo -i -u postgres

Then just execute following

psql


Installing PGAdmin3 GUI console for PostgreSQL


Execute the following command to install PGADMIN3

sudo apt-get install pgadmin3

Now open a new terminal and execute the following command to open PGadmin

pgadmin3

Now you can connect to the DB and do any changes you need.

The admin console will look like following,


Changing the DBs of API-M


Now create following three DBs

WSO2CARBON_DB
WSO2AM_STATS_DB
WSO2AM_DB


Now add add the ProsgreSQL driver which can be found here to <PRODUCT_HOME>/repository/components/lib directory

Now open the <PRODUCT_HOME>/repository/conf/datasources/master-datasources.xml and add the following content, make sure that you change the usernames and password accordingly.


<datasources-configuration xmlns:svns="http://org.wso2.securevault/configuration">

<providers>
    <provider>org.wso2.carbon.ndatasource.rdbms.RDBMSDataSourceReader</provider>
</providers>

<datasources>
<datasource>
      <name>WSO2CARBON_DB1</name>
           <description>The datasource used for registry and user manager</description>
            <jndiConfig>
              <name>jdbc/WSO2CarbonDB</name>
            </jndiConfig>
            <definition type="RDBMS">
                <configuration>
                   <url>jdbc:postgresql://localhost:5432/WSO2CARBON_DB1</url>
                   <defaultAutoCommit>false</defaultAutoCommit>
                    <username>postgres</username>
                    <password>wso2root</password>
                    <driverClassName>org.postgresql.Driver</driverClassName>
                    <maxActive>50</maxActive>
                    <maxWait>60000</maxWait>
                    <testOnBorrow>true</testOnBorrow>
                    <validationQuery>SELECT 1</validationQuery>
                    <validationInterval>30000</validationInterval>
                </configuration>
            </definition>
        </datasource>

        <datasource>
            <name>WSO2AM_DB1</name>
            <description>The datasource used for API Manager database</description>
            <jndiConfig>
                <name>jdbc/WSO2AM_DB</name>
            </jndiConfig>
            <definition type="RDBMS">
                <configuration>
                    <url>jdbc:postgresql://localhost:5432/WSO2AM_DB1</url>
                    <defaultAutoCommit>false</defaultAutoCommit>
                    <username>postgres</username>
                    <password>wso2root</password>
                    <driverClassName>org.postgresql.Driver</driverClassName>
                    <maxActive>50</maxActive>
                    <maxWait>60000</maxWait>
                    <testOnBorrow>true</testOnBorrow>
                    <validationQuery>SELECT 1</validationQuery>
                    <validationInterval>30000</validationInterval>
                </configuration>
            </definition>
        </datasource>

        <datasource>
            <name>WSO2AM_STATS_DB1</name>
            <description>Stat DB</description>
            <jndiConfig>
                <name>jdbc/WSO2AM_STATS_DB</name>
            </jndiConfig>
            <definition type="RDBMS">
                <configuration>
                    <url>jdbc:postgresql://localhost:5432/WSO2AM_STATS_DB1</url>
                    <defaultAutoCommit>false</defaultAutoCommit>
                    <username>postgres</username>
                    <password>wso2root</password>
                    <driverClassName>org.postgresql.Driver</driverClassName>
                    <maxActive>50</maxActive>
                    <maxWait>60000</maxWait>
                    <testOnBorrow>true</testOnBorrow>
                    <validationQuery>SELECT 1</validationQuery>
                    <validationInterval>30000</validationInterval>
                </configuration>
            </definition>
        </datasource>
    </datasources>
</datasources-configuration>

Now start your server with the following command

./wso2server.sh -Dsetup

This will create necessary tables etc.

Thursday, July 17, 2014

Oracle RAC



Stopping and Starting the RAC cluster

Note : "/u01/app/11.2.0/grid/bin/" is my Grid_Home, I'm executing like following since I have not set the PATH variable, do the necessary modification and execute the following commands.

Starting the RAC Cluster

Method 01

# /u01/app/11.2.0/grid/bin/crsctl start cluster -all

Mathod 02

You will have to execute this on both nodes. The has or High Availability service will start all the cluster services.

# /u01/app/11.2.0/grid/bin/crsctl start has

Stopping the RAC Cluster

Method 01

# /u01/app/11.2.0/grid/bin/crsctl stop cluster -all

Method 02

# /u01/app/11.2.0/grid/bin/crsctl stop has


Monitoring the RAC Cluster and DB

General Commands to Monitor the Cluster


# /u01/app/11.2.0/grid/bin/srvctl status nodeapps

# /u01/app/11.2.0/grid/bin/crsctl check crs

# /u01/app/11.2.0/grid/bin/cluvfy comp ocr -n all -verbose

# /u01/app/11.2.0/grid/bin/crs_stat -t -v

# /u01/app/11.2.0/grid/bin/crsctl check cluster -all

# /u01/app/11.2.0/grid/bin/crsctl stat res -t


Check the Status of the Listeners


# /u01/app/11.2.0/grid/bin/srvctl status listener

# /u01/app/11.2.0/grid/bin/srvctl config listener

Detailed options

# /u01/app/11.2.0/grid/bin/lsnrctl status LISTENER

# /u01/app/11.2.0/grid/bin/crsctl status res ora.LISTENER_SCAN1.lsnr

How to start a listener if not listening already

# /u01/app/11.2.0/grid/bin/srvctl start listener -n rac2 -l LISTENER

Checking the DB

Checking whether DB process are running

# ps -ef | grep smon

To set DB related variables when starting the DB

# . ora env

DB information

# /u01/app/11.2.0/grid/bin/srvctl config database -d RAC

# /u01/app/11.2.0/grid/bin/srvctl status database -d RAC



Starting the EM console

Check status

# /u01/app/oracle/product/11.2.0/db_1/bin/emctl status dbconsole

Start Console

# /u01/app/oracle/product/11.2.0/db_1/bin/emctl start dbconsole


Accessing the DB

# sqlplus SYS as sysdba
# ./sqlplus sys/wso2root@scan.private.wso2.com:1521/rac
# ./sqlplus sys/w@192.168.18.116:1521/rac

After Loging in

select instance_name from gv$instance;
select name from V$dalabase;



There are many more commands and options, these are some commands that may come in handy.

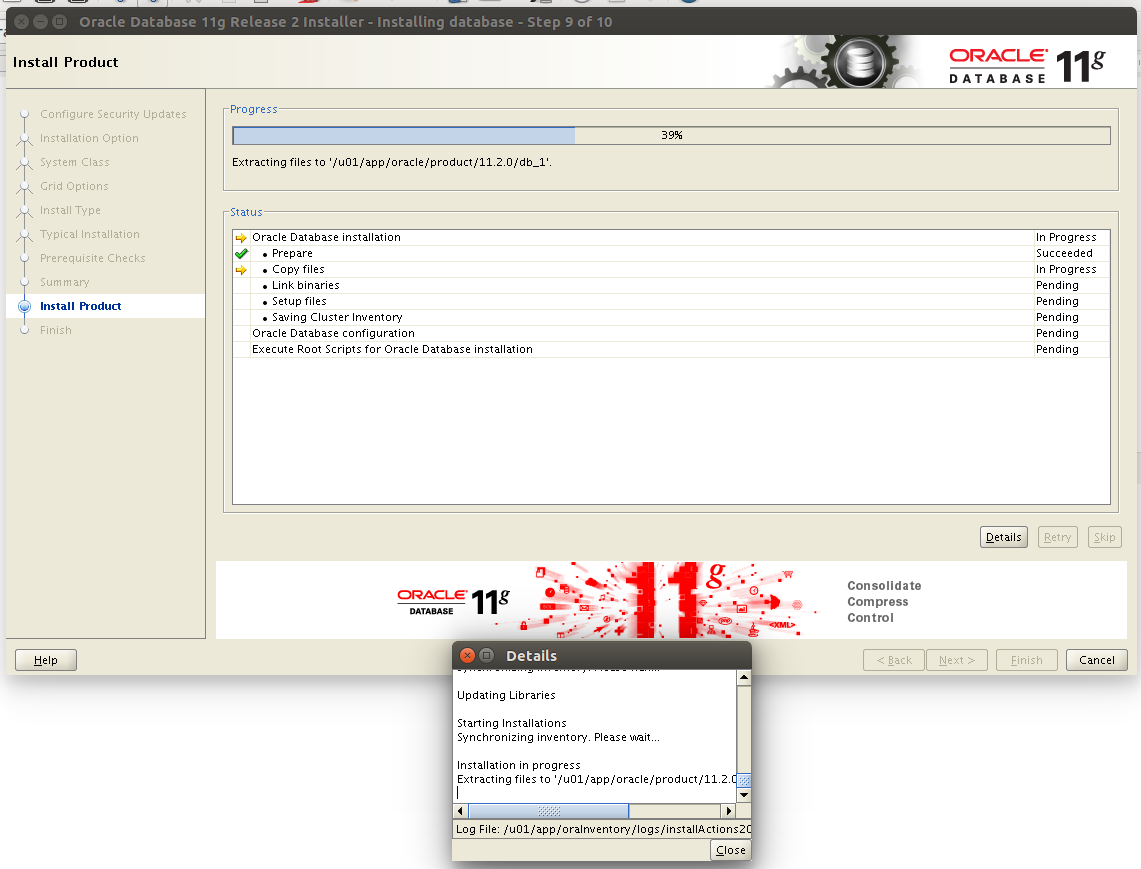

Installing Oracle RAC 11GR2



This guide will explain you how to install and configure an Oracle RAC, which can be a nightmare to install. This post will be followed by several others explaining how to debug your RAC setup, how to monitor and administer your setup etc.

The OS/DB versions I'm using are,

Oracle 11gR2 - Grid Infrastructure/ DB software
Oracle Linux 5.8

The setup will have two nodes and NFS files will be mounted on one of these nodes.

Understanding RAC and SCAN

Oracle RAC is a set of clustered databases which are build upon the shared cache architecture which allows it to be high available and high scalable.
From 11g Oracle has introduced a new concept called SCAN (Single Client Access Name), this allows the the clients to access the clustered database with the single access name, the client doesn't need to know what the DB nodes that exists in the cluster. The DB can be accessed via the SCAN and failover and load-balancing will be managed by the clusterware.

You can read more about Oracle RAC from here.

Prerequisites

Each node of the Cluster needs,

  • A Public IP
  • A Private IP
  • A Virtual IP
  • Should have at-least two network cards. (eth1 & eth0)
Other than the above the SCAN should have 3 virtual IPs. The scan resolution can be done via a DNS server. If you don't have a DNS setup you can set a DNS server in one of your RAC nodes or you can add the SCAN IPs to the /etc/hosts file.

Here is a detail description of all the prerequisites that are needed.

Node Information

RAC1.
  • hostname: rac1.localdomain
  • IP Address eth0: 192.168.18.104 (public address)
  • IP Address eth1: 192.168.19.105 (private address)
  • VIP : 192.168.18.116
RAC2.
  • hostname: rac2.localdomain
  • IP Address eth0: 192.168.18.106 (public address)
  • IP Address eth1: 192.168.19.107 (private address)
  • VIP : 192.168.18.117
SCAN

192.168.18.113
192.168.18.114
192.168.18.115

The architecture would look like the following,




So lets get started :)


First Install the operating system, a detailed guide on this can be found here.

Resolving Oracle Dependencies,

Log into the System as the root user and execute following commands,

First update the yum repository,

# cd /etc/yum.repos.d
# wget http://public-yum.oracle.com/public-yum-el5.repo

Then install Oracle Validated, this will automatically resolve dependencies (Hopefully :))
# yum install oracle-validated
Note : Above command will resolve all package dependencies, and will create all the users that are required and it will also change all the OS related parameters and variables.

After the installation its better to update all the packages,

# yum update

Now set the password for the "oracle" user.
# passwd oracle
Now unzip the grid software. You can do it with the following command,

# unzip linux.x64_11gR2_grid.zip

Now go into the unzipped folder, in my case “cd /home/software/grid” and execute the following command.
# rpm -Uvh cvuqdisk*
Now add the Node IP details to the /etc/hosts file, change the content of the following as you wish but make sure everything is changed when referring further into this post.


The Host File will look like this

# Do not remove the following line, or various programs
# that require network functionality will fail.
127.0.0.1               localhost.localdomain     localhost
::1             localhost6.localdomain6 localhost6

# Public
192.168.18.104   rac1.localdomain        rac1
192.168.18.106   rac2.localdomain        rac2

#Private
192.168.19.105   rac1-priv.localdomain   rac1-priv
192.168.19.107   rac2-priv.localdomain   rac2-priv

#Virtual
192.168.18.116   rac1-vip.localdomain    rac1-vip
192.168.18.117   rac2-vip.localdomain    rac2-vip

#NAS - This is for the NFS mount
192.168.18.104   nas1.localdomain        nas1

Note : It not necessary to include the private IPs of each node in this, and If you do not have a DNS server then you can include the SCAN IP’s also in the host file, and note that this is not acceptable in a production scenario.

Now Change the SELINUX parameter at "/etc/selinux/config" as following
SELINUX=permissive
Make sure that your firewalls are turned off, execute the following commands to make sure that they are turned off.
# service iptables stop# chkconfig iptables off

Now sync your time using a NTP server, you can use the Oracle time syncing service as well to sync the server times. In my case I'll be using the default ntpd service. I'll be syncing my time with local government time server (sltime.org). execute the following commands to sync the time. Make sure that you are loged in as the root user.

Fisrt stop the NTPD service if its running
#service ntpd stop
then you can sync your time with a local NTP server, in my case I’m using local government NTP server,
# ntpdate sltime.org
Now alter the parameter at “/etc/sysconfig/ntpd” as following
OPTIONS="-x -u ntp:ntp -p /var/run/ntpd.pid"
Then restart NTP service
# service ntpd restart
you can use the following command to check the time
# date
Create the directories in which the Oracle software will be installed.
# mkdir -p /u01/app/11.2.0/grid# mkdir -p /u01/app/oracle/product/11.2.0/db_1# chown -R oracle:oinstall /u01# chmod -R 775 /u01/

Login as the "oracle" user and add the following lines at the end of the "/home/oracle/.bash_profile" file.
# Oracle Settings TMP=/tmp; export TMP TMPDIR=$TMP; export TMPDIR ORACLE_HOSTNAME=rac1.localdomain; export ORACLE_HOSTNAME ORACLE_UNQNAME=rac; export ORACLE_UNQNAME ORACLE_BASE=/u01/app/oracle; export ORACLE_BASE GRID_HOME=/u01/app/11.2.0/grid; export GRID_HOME DB_HOME=$ORACLE_BASE/product/11.2.0/db_1; export DB_HOME ORACLE_HOME=$DB_HOME; export ORACLE_HOME ORACLE_SID=rac1; export ORACLE_SID ORACLE_TERM=xterm; export ORACLE_TERM BASE_PATH=/usr/sbin:$PATH; export BASE_PATH PATH=$ORACLE_HOME/bin:$BASE_PATH; export PATH LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib; export LD_LIBRARY_PATH CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib; export CLASSPATH if [ $USER = "oracle" ]; then if [ $SHELL = "/bin/ksh" ]; then ulimit -p 16384 ulimit -n 65536 else ulimit -u 16384 -n 65536 fi fi alias grid_env='. /home/oracle/grid_env' alias db_env='. /home/oracle/db_env'


Create a file called "/home/oracle/grid_env" with the following contents.

ORACLE_HOME=$GRID_HOME; export ORACLE_HOME PATH=$ORACLE_HOME/bin:$BASE_PATH; export PATH LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib; export LD_LIBRARY_PATH CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib; export CLASSPATH


Create a file called "/home/oracle/db_env" with the following contents. ORACLE_SID=rac1; export ORACLE_SID ORACLE_HOME=$DB_HOME; export ORACLE_HOME PATH=$ORACLE_HOME/bin:$BASE_PATH; export PATH LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib; export LD_LIBRARY_PATH CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib; export CLASSPATH

Note : make sure that you make the changes accordingly on both servers, ORACLE_SID and HOSTNAME has to changed accordingly on each node.

Now its better to do a system restart.

Create Shared Disks

First we need to set up some NFS shares. In this case we will do this on the rac1 node, but you can do the on a NAS or a third server if you have one available.

On the rac1 node create the following directories.
# mkdir /shared_config# mkdir /shared_grid# mkdir /shared_home# mkdir /shared_data


Add the following lines to the "/etc/exports" file. /shared_config *(rw,sync,no_wdelay,insecure_locks,no_root_squash) /shared_grid *(rw,sync,no_wdelay,insecure_locks,no_root_squash) /shared_home *(rw,sync,no_wdelay,insecure_locks,no_root_squash) /shared_data *(rw,sync,no_wdelay,insecure_locks,no_root_squash)
Run the following command to export the NFS shares.
# chkconfig nfs on# service nfs restart


On both RAC1 and RAC2 create the directories in which the Oracle software will be installed.
# mkdir -p /u01/app/11.2.0/grid# mkdir -p /u01/app/oracle/product/11.2.0/db_1# mkdir -p /u01/oradata# mkdir -p /u01/shared_config# chown -R oracle:oinstall /u01/app /u01/app/oracle /u01/oradata /u01/shared_config# chmod -R 775 /u01/app /u01/app/oracle /u01/oradata /u01/shared_config



Add the following lines to the "/etc/fstab" file, this will mount the disks on boot. nas1:/shared_config /u01/shared_config nfs rw,bg,hard,nointr,tcp,vers=3,timeo=600,rsize=32768,wsize=32768,actimeo=0 0 0 nas1:/shared_grid /u01/app/11.2.0/grid nfs rw,bg,hard,nointr,tcp,vers=3,timeo=600,rsize=32768,wsize=32768,actimeo=0 0 0 nas1:/shared_home /u01/app/oracle/product/11.2.0/db_1 nfs rw,bg,hard,nointr,tcp,vers=3,timeo=600,rsize=32768,wsize=32768,actimeo=0 0 0 nas1:/shared_data /u01/oradata nfs rw,bg,hard,nointr,tcp,vers=3,timeo=600,rsize=32768,wsize=32768,actimeo=0 0 0


Mount the NFS shares on both servers.

# mount /u01/shared_config# mount /u01/app/11.2.0/grid# mount /u01/app/oracle/product/11.2.0/db_1# mount /u01/oradata

or you can issue the following command

# mount -a

Make sure the permissions on the shared directories are correct.
# chown -R oracle:oinstall /u01/shared_config# chown -R oracle:oinstall /u01/app/11.2.0/grid# chown -R oracle:oinstall /u01/app/oracle/product/11.2.0/db_1 # chown -R oracle:oinstall /u01/oradata

Make Sure you run the following command to check all the prerequisites are been met,you can execute the following by going to the extracted grid infrastructure directory.
# ./runcluvfy.sh stage -pre crsinst -n rac1,rac2 -verbose

Note : Make sure You have resolved all the dependencies and other issues that are indicated after running the above command.

Now Lets Install the GRID Infrastructure.


Go to the extracted Grid Infrastructure directory and run the following command,

# ./runInstaller

Select Install and Configure grid infrastructure.



Select Advance Options and continue.



Add the respective scan name, and deselect the GNS option.


Add the relevant node information


After adding the Node information Setup the password-less SSH connectivity between each node.


Now select the relevant network interfaces.


Here select the Shared File System option.


Now select the external redundancy option for the OCR file location and add the path as following,


Similarly add the Voting Disk configs as following


Select as following and press click next.


Select dba as the user group and continue.


Ignore the following warning and continue.



Enter "/u01/app/oracle" as the Oracle Base and "/u01/app/11.2.0/grid" as the software location, and continue.


Keep the default Inventory location.


If everything is OK the prerequisites are met, the setup will automatically move to the setup summary page. If you are fine with the configurations continue to the installation.





Note Sometimes the setup may look like it is stuck, like following but wait for the setup to continue.


Now execute the Scripts prompted in the , First run the scripts in the first node and then you can execute the scripts in the other nodes. Make sure you run the scripts as the root user.


The script will look like following.


Complete the setup by clicking on Close.



Installing the DB


Now lets install the DB instances. Extract your DB setup, this will have two parts normally. Go to the extracted directory and run
#./runInstaller
Continue the setup process as following.






Note : give the Global database name as "rac" not "rac.localdomain".
 other options as the following,








You can change the default passwords if you wish.



Now the set up is completed and you can check the functionality of the rac by the following commands.


To check whether RAC is working properly.

To check the RAc Apps

# /u01/app/11.2.0/grid/bin/srvctl status nodeapps

To check the CRS

# /u01/app/11.2.0/grid/bin/crsctl check crs

To check the status of listeners.

# /u01/app/11.2.0/grid/bin/srvctl status listener
# /u01/app/11.2.0/grid/bin/srvctl config listener

To verify OCR intergrity

#/u01/app/11.2.0/grid/bin/cluvfy comp ocr -n all -verbose

To chec the status of CRS

#/u01/app/11.2.0/grid/bin/crs_stat -t -v
Note : The gns service ad asm will be offline since we are not using them.

The RAC setup is now completed you can Refer to the RAC administratin and debug guide if you have any issues.


Thanks For reading, and any query is welcome.


Subscribe to RSS Feed Follow me on Twitter!
